Why use ESP?
These units are equipped with specially formulated media which help to remove varnish and other contaminants from the system. Each unit is designed for different systems depending on the requirements. These can vary from Pneumatic, Explosion Proof, even to systems which do not require an external source of power. Different types of filters can also be used depending on the issue being solved such as ENDURE IX, Depth Media or Antistatic filters.
Details & Specifications
How does it work?
Electrophysical Separation Process™ (ESP)
ESP technology relies on the principles of “chemisorption.” ESP selectively removes oil degradation products that are in suspension or in solution without disturbing the fluid’s additive system. For optimal performance, ESP media is fully customized for each application and is selected based on oil type and condition. As oil degradation byproducts (depleted antioxidants and oxidized base oil) make contact with ESP media, the specific mix chemically targets and removes the contaminants through strong adsorption forces. This ensures it will not be released back into the oil. ESP has a high capacity as it uses the full volume of the media, not just surface area.
Contact us for additional product information.

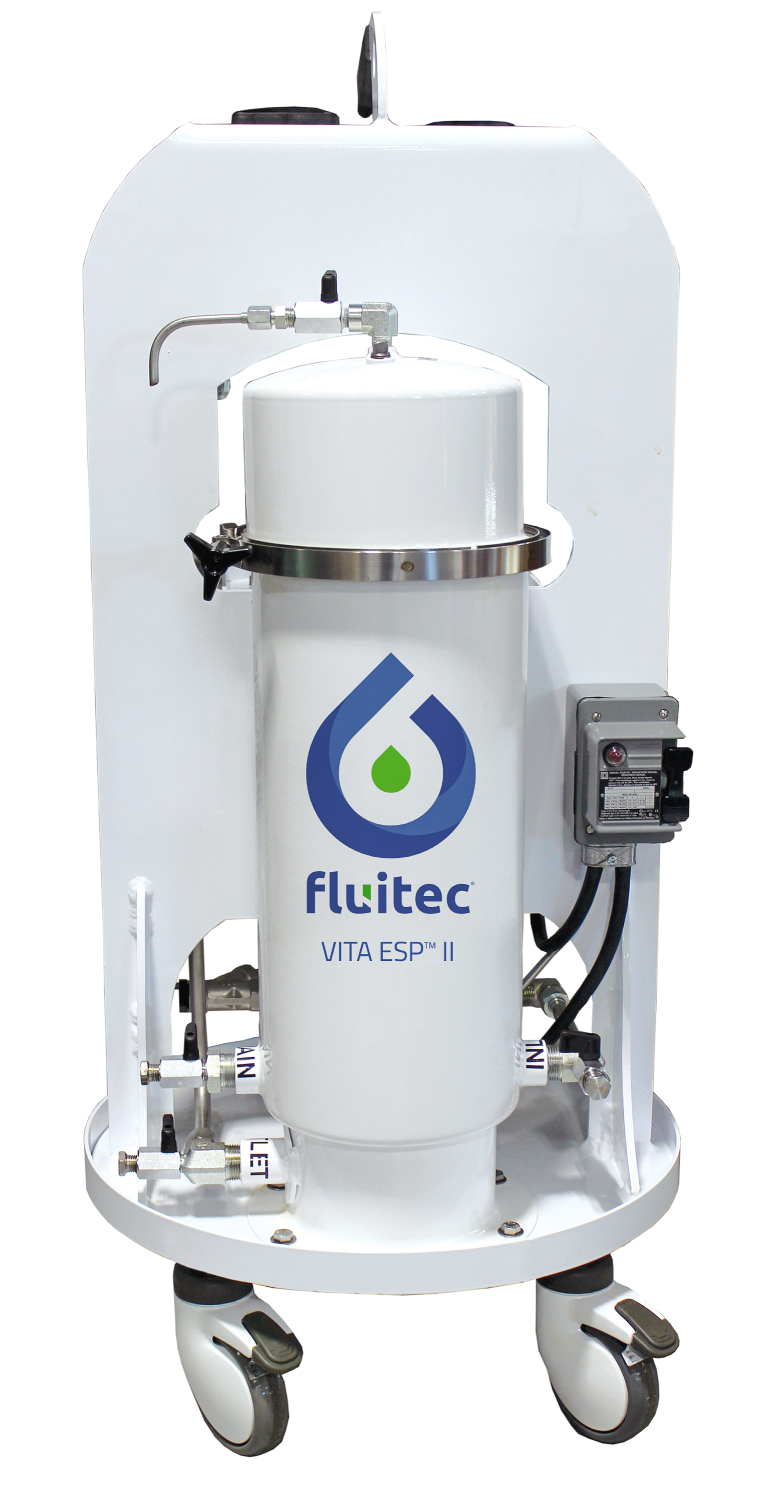

VITA ESP II
Comprehensive contamination control solution, delivering multi-technology contaminant removal. Tackles the full spectrum of damaging contaminants by accommodating a wide range of filtration technologies. From utilizing Fluitec’s patent pending ESP and Endure IX medias to Depth Media,
Particulate, Water Absorption, and Spark-Free filters, the VITA ESP II extends both fluid and equipment life across the globe.
Available as Explosion Proof or Pneumatic.
Features:
- Positive Displacement Pump
- Aluminum Frame with 14 Ga. Carbon Steel Housing
- Inlet Stainless Steel Y-Strainer Upstream of Pump to protect from Large Particles
- Post Filtration for prevention of media migration
- Differential Pressure Gauge Mounted to Aluminum Spin-on-Filter Health Gauge to monitor filter life

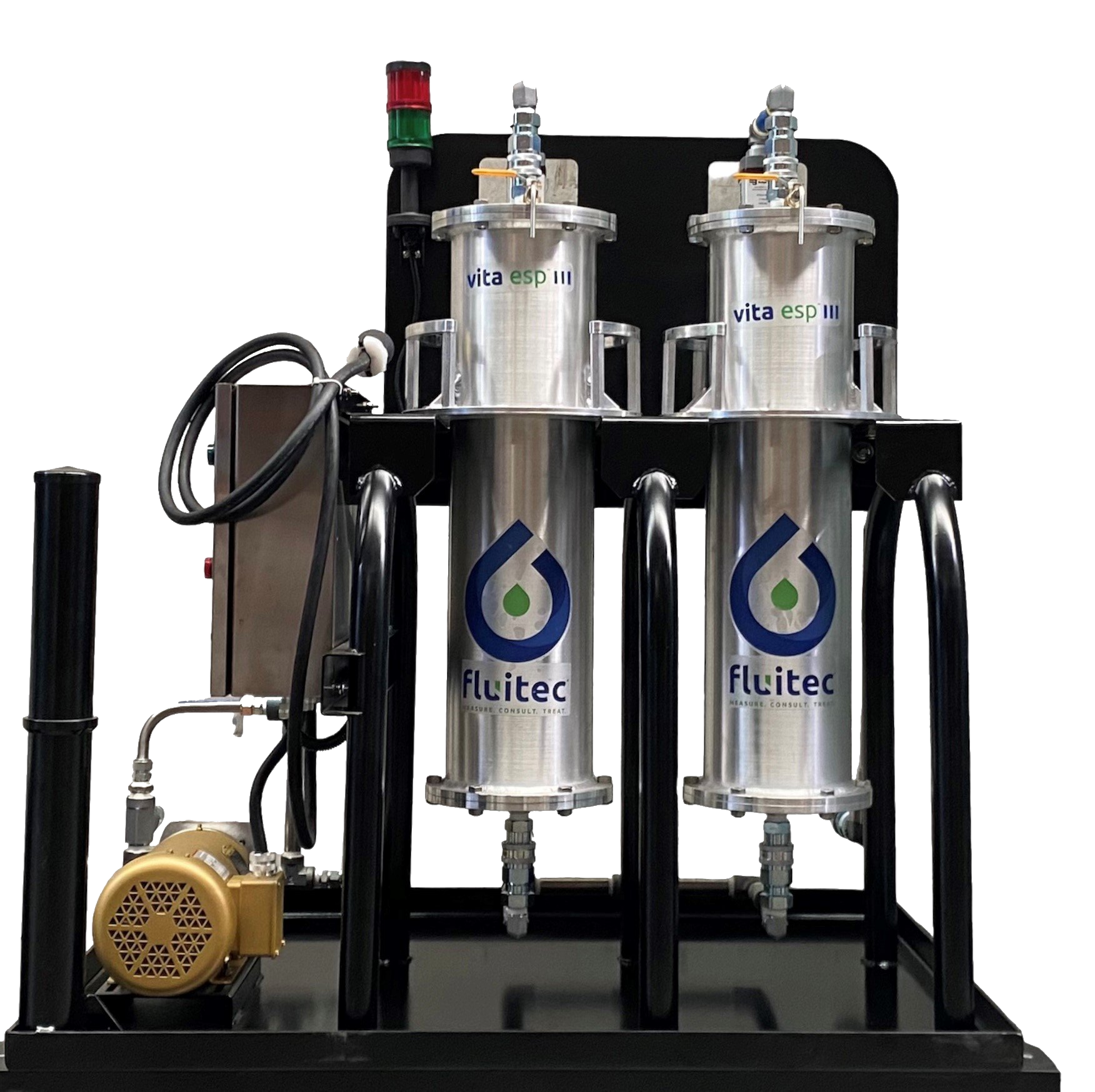

VITA ESP III
High-capacity contamination control platform, engineered for advanced multi-technology removal. The VITA III ESP combines Fluitec’s ESP media innovations with Endure IX, high-capacity depth filtration, particulate capture, and water removal technologies.
Designed to handle greater contaminant loads and extend service intervals, the VITA III ESP delivers superior protection that maximizes fluid reliability and equipment performance worldwide.
Available as Explosion Proof or Pneumatic.
Ratings and Specifications:
- XP Certifications:
- Class I, Div 2, Groups C and D
- Class II, Div 2, Groups F and G
- System IEX Type: IP54
- Enclosure NEMA Type 4X, 7BCD, 9EFG
ESP V 100, V 200
Filtration Unit designed for the utilization of filter elements to clean and protect liquid assets.
Designed to be directly integrated into existing systems with no additional power required.
Features:
- Unit supports a wide range filtration elements
- No moving parts and less maintenance
- Reduced total emissions when compared to motorized units
- Includes sampling valves, pressure gauge, drain valves, and
inlet/outlet shut off vales to control and monitor system.
